Mounting help for Delfina / DENEB
The Delfina can be operated on the DENEB clockport without major problems. A firmware upgrade
for the DENEB is needed anyhow. Please contact our support if you are interested.
For stable operation an additional grounding cable has to be attached between DENEB and Delfina.
Connection points can be seen on the picture below in detail.
Please note:
if anything is unclear regarding installation of the Delfina on the DENEB, please
contact our support before "playing around". This may lead to hardware damages on both Delfina and DENEB.
It is recommended to install Delfina software before making any hardware changes.
For the first test the Delfina should only be connected with the clockport cable, any additional
cabling (like audio cables) are not recommended. The additional GND cable should also be removed.
(Click for enlarged view)
Additional mounting help for Buddha and Xsurf
Connecting the SUBWAY to the Buddha IDE controller or the Xsurf network card from
individual computers is for some customers sometimes a riddle, as the documentation of
both cards lacks information on the clockport orientation. Due to help from an active user
of the SUBWAY (which was confronted with exactly this problem) we can now offer
extended information on the correct connection between SUBWAY and both cards mentioned.
Both diagrams were carefully checked. As E3B has no influence on the technical specification
of products manufactured by individual computer and may not be informed about product changes
we can not take any guarantee on the correctness of both diagrams.
In case of questions (left open by the enclosed documentation) please don't hesitate to contact
us by mail.
Additional mounting help for the Amiga 1200 Desktop
Why should I read the manual ?
The SUBWAY is delivered with a comprehensive manual describing the hardware installation
of the module into the Amiga 1200 in detail. Please read this manual carefully before starting
the installation. If any questions are still open, please clarify these before going on.
The SUBWAY is not suited to "test" the correct orrientation of the clockport connector.
Just to give you an impression of what can happen if you don't follow the manual:
(Click for enlarged view)
Does this beast fit into my Amiga at all ?
As many requests came from you the last weeks on how to mount the SUBWAY in the AMiga 1200, we
decided to give you a helping hand in this issue.
The SUBWAY fits without problems into the desktop housing of the Amiga 1200, as long as no other
expansion modules occupy the needed space.
You will need approx. 12cm free space left of the floppy drive, free access to the clockport (also left of the
floppy) and some space to get the USB cables from the housing to the outside.
As SUBWAY is (in contrast to other brand modules) completely isulated by heat shrinking hose, you won't
experience any short circuiting situations - as long as the hose is not damaged. So take care of it while
mounting the SUBWAY.
Connecting to the clockport
Connection of the SUBWAY is done by a 10cm flat ribbon cable. You will find a detailed description
on how to disassemble your Amiga 1200 for mounting the SUBWAY in your manual (enclosed in your package).
Please consult also your computer's manual.

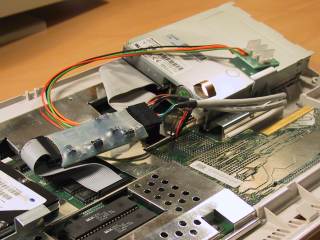

Now for the details: here's a SUBWAY connected to the clockport
(Click for enlarged view)
In the lower left corner you can see the Kickstart ROMs, above is the clockport with connected flat
ribbon cable. Keyboard was removed for this picture.
USB cables are directed out of the housing below the disk drive through the (very often unused) opening
in the backside of the Amiga 1200. You can insert the cables easily without dismounting the disk drive by
removing the cover of the outlet on the backside and inserting the USB cables from outside.

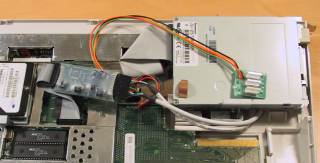

Same details, other angle of view:
(Click for enlarged view)
Depending on your already installed expansion modules (here a 1230 IV) you might need to look for another
possibility to get the USB cables out of the computer.
Wichtig:
- Do bot shut the USB cables !
- Do not bend the USB cables by force !
- Keep all cables out of hot regions in your computer (processor etc.) !
And the keyboard ?

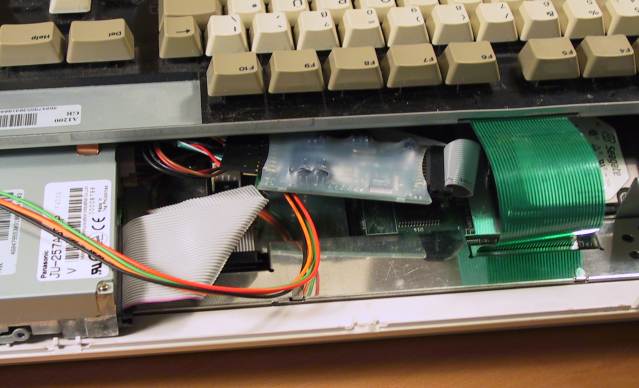

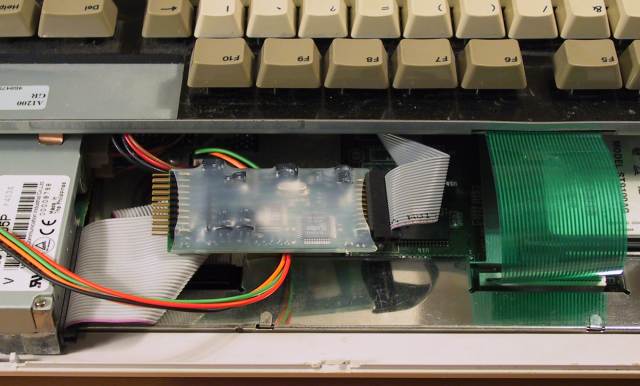

No problem at all. SUBWAY does fit perfectly beneath the A1200 desktop keyboard. We made quite
efforts to get the smallest sized USB controller for Amiga Classic which is available.
(Click for enlarged view)
(Click for enlarged view)
Please take care of these points:
- Connect all SUBWAY cables carefully. Otherwise they might get loose.
- Do not harm the heat shrinking tubing!
- Do not shut any cables !
- Use only the original SUBWAY cables !
- Do not bend the clockport cable by force - even wires can break !
Any questions left open ?
Should questions arise (despite the fact that you have read our manual describing the installation in detail)
please feel free to contact us by
mail.
We try to help you as fast as possible in any case.
